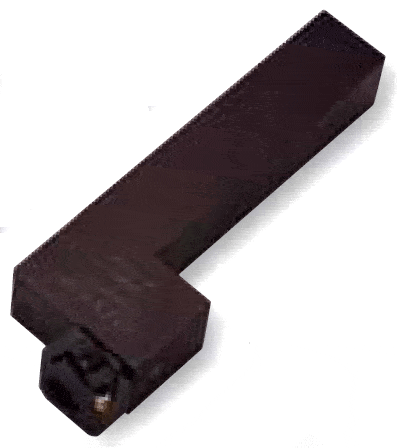

Diamond tip type burnishing tool, CAT’S EYE can be applied to hard materials up to HRC 60. Throw-away tip enables quick and easy replacement.

  • For inner surface
Category:
Model # Processing Section Shank Diameter (in) Handed Direction Peripheral Velocity (ft/min) Feed (in/rev) Spring Load (lbs) Tip Type and Number List Price
CEO-4D1R-S25 Outer Surface Ø0.984 Right Handed 165~650 0.002 9 DT4D1 QUOTE
CEO-4D1L-S25 Outer Surface Ø0.984 Left Handed 325 0.001 200 DT4D1 QUOTE
CEF-4D1R-S25 End Surface Ø0.984 Right Handed 165~650 0.002 45 DT4D1 QUOTE
CEF-4D1L-S25 End Surface Ø0.984 Left Handed N/A N/A N/ADT4D1 QUOTE
