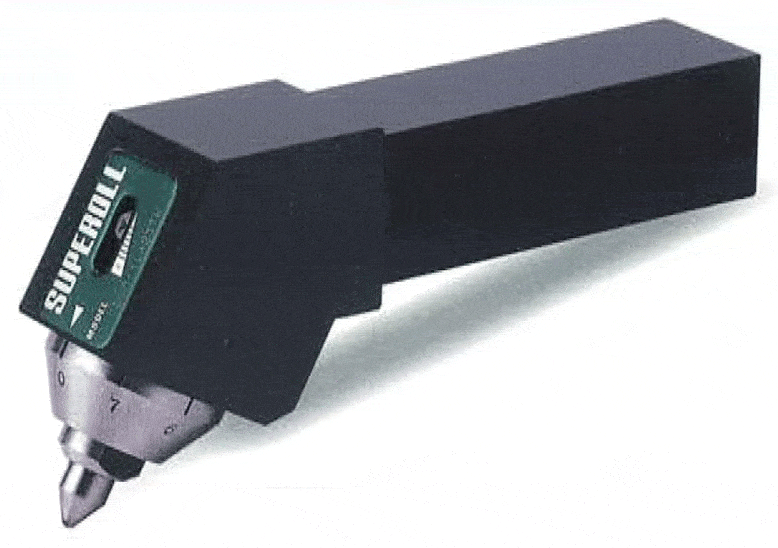

Diamond Superoll tools provide “mirror” surface finishes in material up to 60 Rockwell C in hardness.
The interference area of the tool includes a clearance of 0.020 inches (0.5mm).

Category:
Model # Diamond Tip Configuration Mandrel Model Interference Area Angular Contact Range (Allowable) Shank Angle List Price
DSR-1LA25TH 0.059 inches (1.5 mm) DR-1.5 0.079 inches (2 mm)±30º 60º QUOTE
DSR-1LC25TH 0.059 inches (1.5 mm) DR-1.5 0.079 inches (2 mm)±30º 30º QUOTE
DSR-1LB25TH 0.059 inches (1.5 mm) DR-1.5 0.079 inches (2 mm)±30º 45º QUOTE
DSR-1NC20TH 0.059 inches (1.5 mm) DR-1.5 0.079 inches (2 mm)±30º Straight QUOTE
DSR-3LA25TH 0.118 inches (3 mm) DR-3 0.138 inches (3.5 mm) ±30º 60º QUOTE
DSR-3LC25TH 0.118 inches (3 mm) DR-3 0.138 inches (3.5 mm) ±30º 30º QUOTE
DSR-3LB25TH 0.118 inches (3 mm) DR-3 0.138 inches (3.5 mm) ±30º 45º QUOTE
DSR-3NC20TH0.118 inches (3 mm) DR-3 0.138 inches (3.5 mm) ±30º Straight QUOTE
DSR-8LA25TH 0.0315 inches (8 mm) DR-8 0.178 inches (4.5 mm) ±1.5º 60º QUOTE
DSR-8LC25TH 0.0315 inches (8 mm) DR-8 0.178 inches (4.5 mm) ±1.5º 30º QUOTE
DSR-8LB25TH 0.0315 inches (8 mm) DR-8 0.178 inches (4.5 mm) ±1.5º 45º QUOTE
DSR-8NC20TH 0.0315 inches (8 mm) DR-8 0.178 inches (4.5 mm) ±1.5º Straight QUOTE
