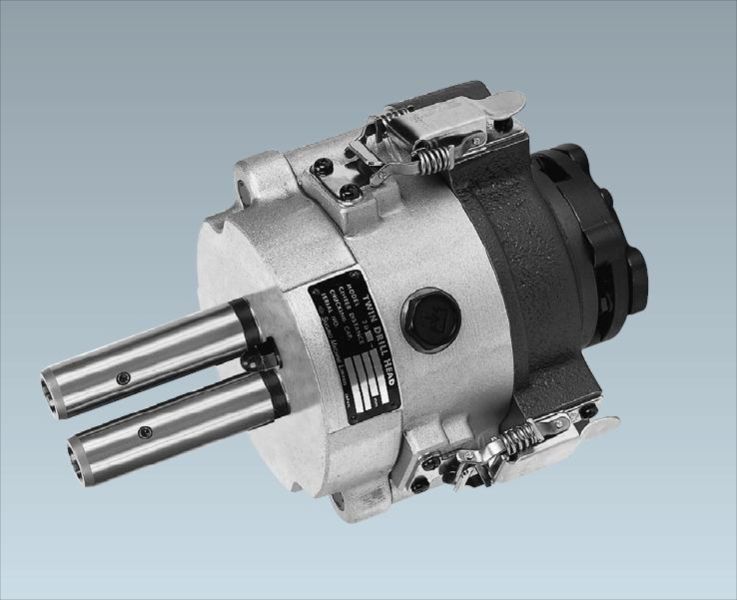

Home / Drilling and Tapping Machines For Automation / Drill Heads ASA “Quick-Change” Adapter – “Catch-Clip Type”

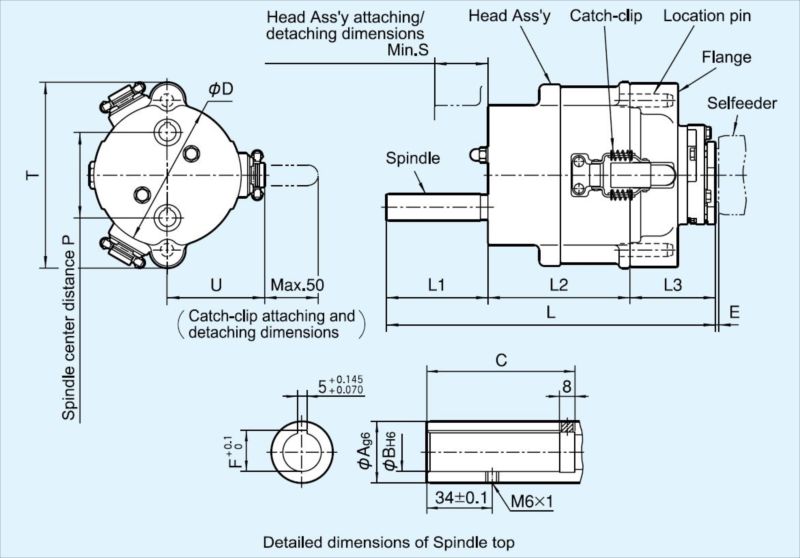

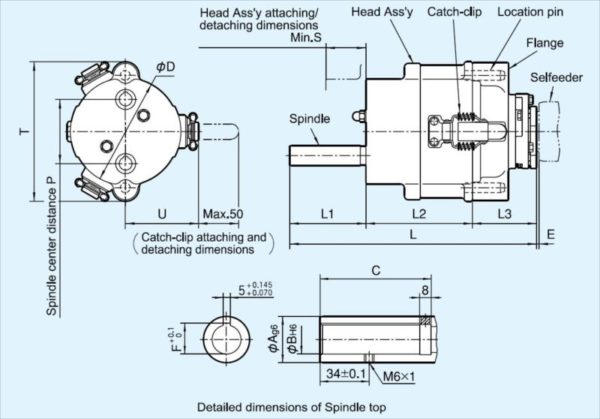

Categories: Drill Head, Drilling and Tapping Machines For Automation, Multi-Spindle Drilling and Tapping Heads Model #ASA Spindle SizePDLTUSpindle MotorList Price2D43-AM1CU(B)E-5/8-165/8-161.03 ~ 3.23 inches (26 ~ 82 mm)5.28 inches (134 mm)12.13 inches (308 mm)6.85 inches (174 mm)3.58 inches (91 mm)2-SpindleQUOTE2D43-AM1CU(B)E-3/4-123/4-121.30 ~ 3.07 inches (33 ~ 78 mm)5.28 inches (134 mm)12.33 inches (313 mm)6.85 inches (174 mm)3.58 inches (91 mm)2-SpindleQUOTE2D53-AM1CUE-5/8-165/8-161.03 ~ 5.08 inches (26 ~ 129 mm)7.56 inches (192 mm)13.62 inches (346 mm)10.00 inches (254 mm)4.57 inches (116 mm) 2-SpindleQUOTE2D53-AM1CUE-3/4-123/4-121.30 ~ 4.92 inches (33 ~ 125 mm)7.56 inches (192 mm)13.82 inches (351 mm)10.00 inches (254 mm)4.57 inches (116 mm)2-SpindleQUOTE2D63-AM1CUE-5/8-165/8-161.03 ~ 5.08 inches (26 ~ 129 mm)7.56 inches (192 mm)14.05 inches (357 mm)10.00 inches (254 mm)4.57 inches (116 mm)2-SpindleQUOTE2D63-AM1CUE-3/4-123/4-121.30 ~ 4.92 inches (33 ~ 125 mm)7.56 inches (192 mm)14.25 inches (362 mm)10.00 inches (254 mm)4.57 inches (116 mm)2-SpindleQUOTE3D43-AM1CU(B)E-5/8-165/8-161.03 ~ 2.80 inches (26 ~ 71 mm)5.28 inches (134 mm)12.13 inches (308 mm)6.85 inches (174 mm)3.58 inches (91 mm)3-SpindleQUOTE3D43-AM1CU(B)E-3/4-123/4-121.30 ~ 2.64 inches (33 ~ 67 mm)5.28 inches (134 mm)12.33 inches (313 mm)6.85 inches (174 mm)3.58 inches (91 mm) 3-SpindleQUOTE3D53-AM1CUE-5/8-165/8-161.03 ~ 4.37 inches (26 ~ 111 mm)7.56 inches (192 mm)13.62 inches (346 mm)10.00 inches (254 mm)4.57 inches (116 mm)3-SpindleQUOTE3D53-AM1CUE-3/4-123/4-121.30 ~ 4.25 inches (33 ~ 108 mm)7.56 inches (192 mm)13.82 inches (351 mm)10.00 inches (254 mm)4.57 inches (116 mm)3-SpindleQUOTE3D63-AM1CUE-5/8-165/8-161.03 ~ 4.37 inches (26 ~ 111 mm)7.56 inches (192 mm)14.05 inches (357 mm)10.00 inches (254 mm)4.57 inches (116 mm)3-SpindleQUOTE3D63-AM1CUE-3/4-123/4-121.30 ~ 4.25 inches (33 ~ 108 mm)7.56 inches (192 mm)14.25 inches (362 mm)10.00 inches (254 mm)4.57 inches (116 mm)3-SpindleQUOTE4D53-AM1CUE-5/8-165/8-16 1.03 ~ 3.58 inches (26 ~ 91 mm)7.56 inches (192 mm)13.62 inches (346 mm)10.00 inches (254 mm)4.57 inches (116 mm)4-SpindleQUOTE4D53-AM1CUE-3/4-123/4-121.30 ~ 3.46 inches (33 ~ 88 mm)7.56 inches (192 mm)13.82 inches (351 mm)10.00 inches (254 mm)4.57 inches (116 mm)4-SpindleQUOTE4D63-AM1CUE-5/8-165/8-16 1.03 ~ 3.53 inches (26 ~ 91 mm)7.56 inches (192 mm)14.05 inches (357 mm)10.00 inches (254 mm)4.57 inches (116 mm)4-SpindleQUOTE4D63-AM1CUE-3/4-123/4-121.30 ~ 3.46 inches (33 ~ 88 mm)7.56 inches (192 mm)14.25 inches (362 mm)10.00 inches (254 mm)4.57 inches (116 mm)4-SpindleQUOTE
