• 1/2 or 3/4 HP spindle motors
  • 900-9000 fixed rpm spindle speed range
  • Maximum drilling capacity in mild steel is 11/32 in.(8.5 mm)
  • Maximum drilling capacity in cast iron 25/64 in. (10 mm)
  • Maximum drilling capacity in aluminum 1/2 in.(12.5 mm)
  • Standard stroke of 3.15 in. (80 mm) (L type) with 5.91 in. (150 mm) (LL type) optional

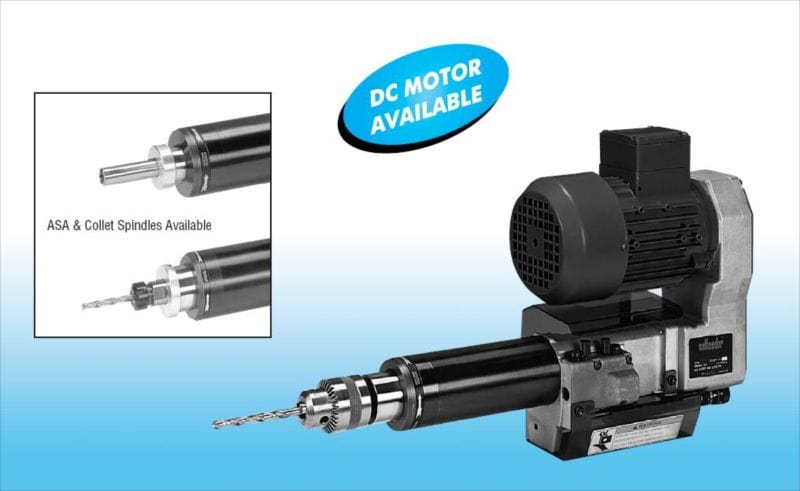

  • Standard JT33 and JT1 type spindles for drill or collet chucks with integral collet, ASA and KH quick change, and special spindles available as options
SKU: N/A Categories: , ,
Model #Spindle RPM (no load)Aluminum Drill SizeCast Iron Drill SizeMild Steel Drill SizeTheoretical Spindle TorqueThrustList Price
ES3P-2-3075L(LL)U90001/8 in 3 mm1/16 in 1.5 mm 1/16 in 1.5 mm 0.44 ft.lbs 0.60 N·m119 kg 264 lbsQUOTE
ES3P-2-3060L(LL)U72005/32 in 4 mm1/16 in 1.5 mm1/16 in 1.5 mm0.55 ft.lbs 0.75 N·m119 kg 264 lbsQUOTE
ES3P-2-6054L(LL)U650013/64 in 5 mm1/16 in 1.5 mm1/16 in 1.5 mm 0.61 ft.lbs 0.83 N·m119 kg 264 lbsQUOTE
ES3P-2-6049L(LL)U5900 13/64 in 5 mm5/64 in 2 mm5/64 in 2 mm0.66 ft.lbs 0.87 N·m119 kg 264 lbsQUOTE
ES3P-2-6043L(LL)U52007/32 in 5.5 mm5/64 in 2 mm5/64 in 2 mm0.76 ft.lbs 1.03 N·m119 kg 264 lbsQUOTE
ES3P-2-6034L(LL)U4100 15/64 in 6 mm1/8 in 3 mm 1/8 in 3 mm0.96 ft.lbs 1.30 N·m 119 kg 264 lbsQUOTE
ES3P-2-1330L(LL)U3600 5/16 in 8 mm1/8 in 3 mm1/8 in 3 mm1.09 ft.lbs 1.61 N·m119 kg 264 lbsQUOTE
ES3P-2-1326L(LL)U3200 11/32 in 8.5 mm9/64 in 3.5 mm9/64 in 3.5 mm 1.23 ft.lbs 1.67 N·m119 kg 264 lbsQUOTE
ES3P-2-1321L(LL)U250023/64 in 9 mm 11/64 in 4.5 mm 11/64 in 4.5 mm 1.58 ft.lbs 2.14 N·m 119 kg 264 lbsQUOTE
ES3P-2-1318L(LL)U2200 3/8 in 9.5 mm13/64 in 5 mm13/64 in 5 mm1.79 ft.lbs 2.43 N·m 119 kg 264 lbsQUOTE
ES3P-2-1315L(LL)U1800 27/64 in 10.5 mm 15/64 in 6 mm 15/64 in 6 mm2.19 ft.lbs 2.97 N·m119 kg 264 lbsQUOTE
ES3P-4-1338L(LL)U4500 1/4 in 6.5 mm3/32 in 2.5 mm3/32 in 2.5 mm0.58 ft.lbs 0.79 N·m119 kg 264 lbsQUOTE
ES3P-4-1330L(LL)U360019/64 in 7.5 mm1/8 in 3 mm1/8 in 3 mm 0.73 ft.lbs 0.98 N·m119 kg 264 lbsQUOTE
ES3P-4-1327L(LL)U320019/64 in 7.5 mm9/64 in 3.5 mm9/64 in 3.5 mm0.82 ft.lbs 1.11 N·m119 kg 264 lbsQUOTE
ES3P-4-1325L(LL)U2900 19/64 in 7.5 mm9/64 in 3.5 mm9/64 in 3.5 mm0.91 ft.lbs 1.23 N·m119 kg 264 lbsQUOTE
ES3P-4-1322L(LL)U26005/16 in 8 mm5/32 in 4 mm5/32 in 4 mm1.01 ft.lbs 1.37 N·m119 kg 264 lbsQUOTE
ES3P-4-1317L(LL)U2000 11/32 in 8.5 mm7/32 in 5.5 mm7/32 in 5.5 mm 1.31 ft.lbs 1.78 N·m119 kg 264 lbsQUOTE
ES3P-4-1315L(LL)U180023/64 in 9 mm15/64 in 6 mm 15/64 in 6 mm1.46 ft.lbs 1.98 N·m119 kg 264 lbsQUOTE
ES3P-4-1313L(LL)U16003/8 in 9.5 mm9/32 in 7 mm9/32 in 7 mm1.64 ft.lbs 2.22 N·m119 kg 264 lbsQUOTE
ES3P-4-1310L(LL)U120027/64 in 10.5 mm23/64 in 9 mm 19/64 in 7.5 mm2.19 ft.lbs 2.96 N·m119 kg 264 lbsQUOTE
ES3P-4-1309L(LL)U1100 7/16 in 11 mm 23/64 in 9 mm 5/16 in 8 mm2.39 ft.lbs 3.29 N·m119 kg 264 lbsQUOTE
ES3P-4-1307L(LL)U900 1/2 in 12.5 mm25/64 in 10 mm11/32 in 8.5 mm2.92 ft.lbs 3.95 N·m119 kg 264 lbsQUOTE
