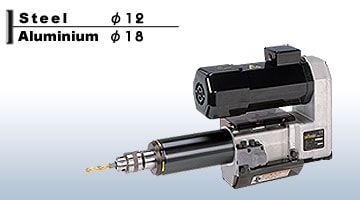

ES4P-LU Selfeeder - Hutchison Tool Sales

Name: ES4P-LU Selfeeder
SKU: 449
Availability: InStock

Higher powered 0.55kW and 0.75kW motors are employed.
Attach a multiple spindle head to provide additional performance and productivity.

SKU: N/A Categories: Selfeeder Component Drilling Units, Air/Electric Type to 7.5 HP (5.5 kW), Drilling and Tapping Machines For Automation

Model #	Spindle Speed (no load)	Max. Drill Size Aluminum	Max. Drill Size Cast Iron	Max. Stroke	Thrust	Weight	List Price
ES4P-6061	6100 min -1 at 50 Hz 7300 min -1 at 60 Hz	5 mm	1.5 mm	100 mm	1800 N	31 kg	QUOTE
ES4P-6061L	6100 min -1 at 50 Hz 7300 min -1 at 60 Hz	5 mm	1.5 mm	200 mm	1800 N	36 kg	QUOTE
ES4P-6045	4500 min -1 at 50 Hz 5400 min -1 at 60 Hz	5.5 mm	2 mm	100 mm	1800 N	31 kg	QUOTE
ES4P-6045L	4500 min -1 at 50 Hz 5400 min -1 at 60 Hz	5.5 mm	2 mm	200 mm	1800 N	36 kg	QUOTE
ES4P-1330	3000 min -1 at 50 Hz 3600 min -1 at 60 Hz	7 mm	3.5 mm	100 mm	1800 N	31 kg	QUOTE
ES4P-1330L	3000 min -1 at 50 Hz 3600 min -1 at 60 Hz	7 mm	3.5 mm	200 mm	1800 N	36 kg	QUOTE
ES4P-1320	2000 min -1 at 50 Hz 2400 min -1 at 60 Hz	9 mm	5 mm	100 mm	1800 N	31 kg	QUOTE
ES4P-1320L	2000 min -1 at 50 Hz 2400 min -1 at 60 Hz	9 mm	5 mm	200 mm	1800 N	36 kg	QUOTE
ES4P-1314	1400 min -1 at 50 Hz 1700 min -1 at 60 Hz	10 mm	6 mm	100 mm	1800 N	31 kg	QUOTE
ES4P-1314L	1400 min -1 at 50 Hz 1700 min -1 at 60 Hz	10 mm	6 mm	200 mm	1800 N	36 kg	QUOTE
ES4P-1311	1100 min -1 at 50 Hz 1400 min -1 at 60 Hz	11 mm	8 mm	100 mm	1800 N	31 kg	QUOTE
ES4P-1311L	1100 min -1 at 50 Hz 1400 min -1 at 60 Hz	11 mm	8 mm	200 mm	1800 N	36 kg	QUOTE
ES4P-1308	850 min -1 at 50 Hz 1000 min -1 at 60 Hz	12 mm	10 mm	100 mm	1800 N	31 kg	QUOTE
ES4P-1308L	850 min -1 at 50 Hz 1000 min -1 at 60 Hz	12 mm	10 mm	200 mm	1800 N	36 kg	QUOTE
ES4P-1306	600 min -1 at 50 Hz 700 min -1 at 60 Hz	14 mm	11.5 mm	100 mm	1800 N	31 kg	QUOTE
ES4P-1306L	600 min -1 at 50 Hz 700 min -1 at 60 Hz	14 mm	11.5 mm	200 mm	1800 N	36 kg	QUOTE
ES4P-1304	480 min -1 at 50 Hz 550 min -1 at 60 Hz	16 mm	13 mm	100 mm	1800 N	35 kg	QUOTE
ES4P-1304L	480 min -1 at 50 Hz 550 min -1 at 60 Hz	16 mm	13 mm	200 mm	1800 N	40 kg	QUOTE
ES4P-1303	320 min -1 at 50 Hz 380 min -1 at 60 Hz	17.5 mm	14 mm	100 mm	1800 N	35 kg	QUOTE
ES4P-1303L	320 min -1 at 50 Hz 380 min -1 at 60 Hz	17.5 mm	14 mm	200 mm	1800 N	40 kg	QUOTE
ES4P-1302	210 min -1 at 50 Hz 250 min -1 at 60 Hz	18 mm	14.5 mm	100 mm	1800 N	35 kg	QUOTE
ES4P-1302L	210 min -1 at 50 Hz 250 min -1 at 60 Hz	18 mm	14.5 mm	200 mm	1800 N	40 kg	QUOTE
