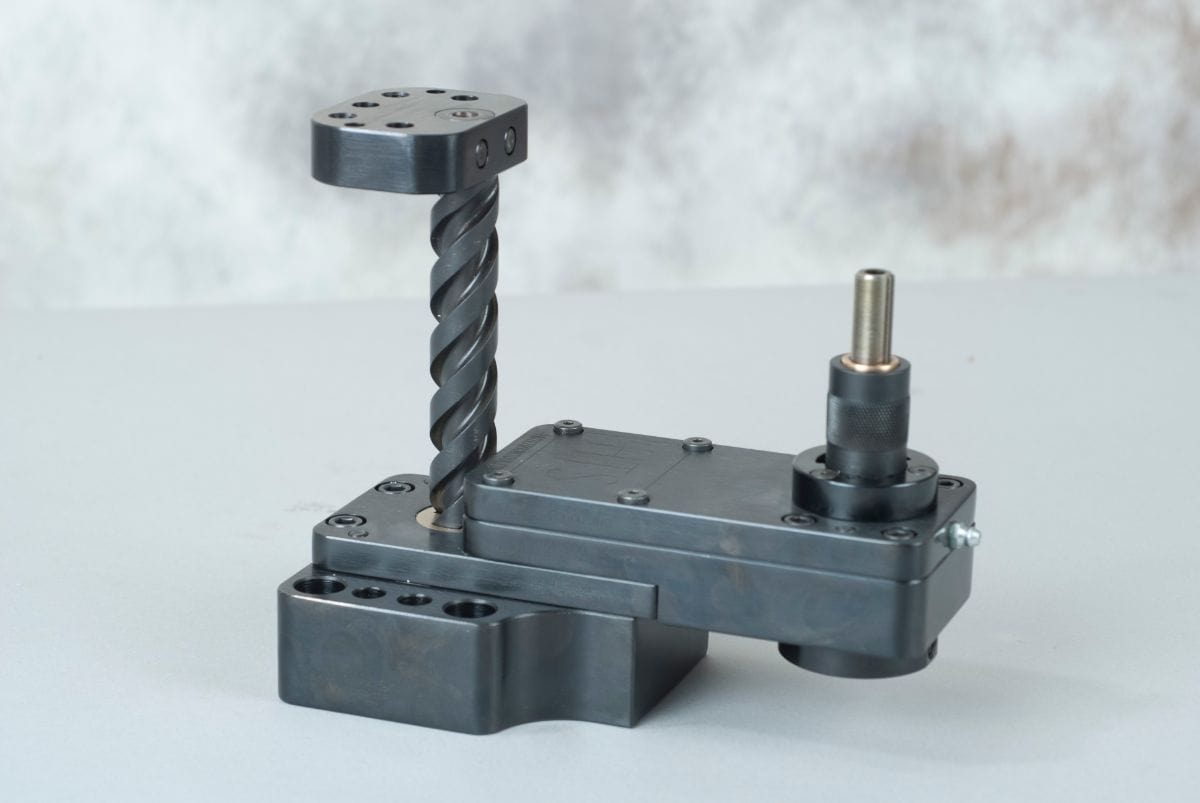

Single and Multi-Spindle Units (For strip lift under 1/8″” (3 mm)

Tapping Capacity (#2-56 to 1/4-20 or M2 to M6)

Multi-spindle units made to customer centerline specifications
Send part prints/strip layouts to have multi-spindle applications quoted.

Design and Product Specifications

Tapping capacity (#2-56 to 1/4-20 or M2 to M6 )
Press strokes up to 12″”
Press speeds up to 250 SPM
2D & 3D design files
Complete design support
Die review of tapping stations
Complete bill of material for standard and multi-spindle units
One Year/ One Million stores limited warranty

Economical

Tapping heads can be moved to multiple dies
Use standard rollform taps for the manufacturer of your choice
Low maintenance driver only requires a few minutes of basic maintenance

Convenient

Simple design & installation saves tooling costs
Coolant ring allows for through the tapping head coolant
Multiple mounting options allows tapping head to be removed from die while in the press
Change taps in press in under a minute

SKU: N/A Categories: ,
Model #Tapping RangeMax. SpeedPress StrokeTap Revolution per 1" Press StrokeList Price
3000-32-56 (M2) to 1/4-20 (M6)250 SPM3 in1.6:1 to 5:1QUOTE
3000-42-56 (M2) to 1/4-20 (M6)250 SPM4 in1.6:1 to 5:1QUOTE
3000-52-56 (M2) to 1/4-20 (M6)250 SPM5 in1.6:1 to 5:1QUOTE
3000-62-56 (M2) to 1/4-20 (M6)250 SPM6 in1.6:1 to 5:1QUOTE
3000-72-56 (M2) to 1/4-20 (M6)250 SPM7 in1.6:1 to 5:1QUOTE
3000-82-56 (M2) to 1/4-20 (M6)250 SPM8 in1.6:1 to 5:1QUOTE
3000-92-56 (M2) to 1/4-20 (M6)250 SPM9 in1.6:1 to 5:1QUOTE
3000-102-56 (M2) to 1/4-20 (M6)250 SPM10 in1.6:1 to 5:1QUOTE
3000-112-56 (M2) to 1/4-20 (M6)250 SPM11 in1.6:1 to 5:1QUOTE
3000-122-56 (M2) to 1/4-20 (M6)250 SPM12 in1.6:1 to 5:1QUOTE
