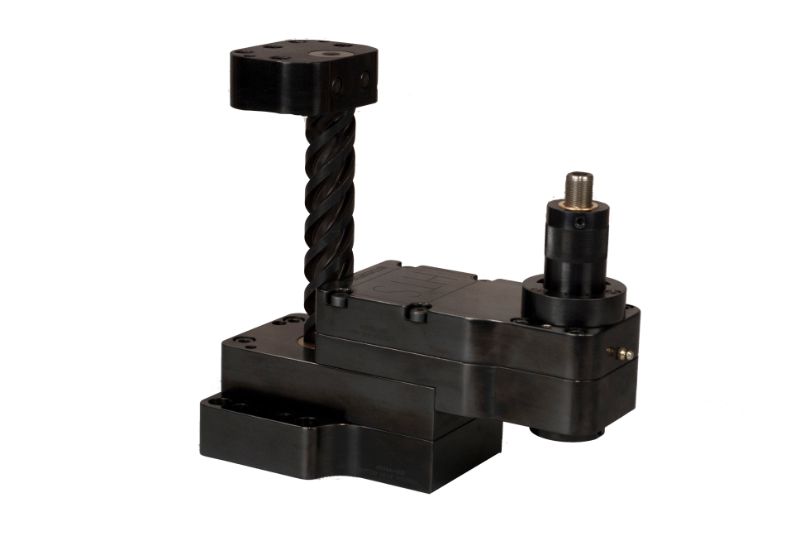

Single and Multi-Spindle Units (For strip lift under 1/8″” (3 mm)

Tapping Capacity (#6-32 to 1/2-20 or M3.5 to M12)

Conserve die space with multi-spindle units
Send part prints/strip layouts to have multi-spindle applications quoted.

Design and Product Specifications

Tapping capacity (#6-32 to 1/2-20 or M3.5 to M12)
Press strokes up to 20″”
Press speeds up to 100 SPM
2D & 3D design files
Complete design support
Die review of tapping stations
Complete bill of material for standard and multi-spindle units
One Year/ One Million stores limited warranty

Economical

Tapping heads can be moved to multiple dies
Use standard rollform taps for the manufacturer of your choice
Low maintenance driver only requires a few minutes of basic maintenance

Convenient

Simple design & installation saves tooling costs
Coolant ring allows for through the tapping head coolant
Multiple mounting options allows tapping head to be removed from die while in the press
Change taps in press in under a minute

SKU: N/A Categories: ,
Model #Tapping RangeMax. SpeedPress StrokeTap Revolution per 1" Press StrokeList Price
6000-36-32 (M3.5) to 1/2-20 (M12)100 SPM3 in1:1 to 4:1QUOTE
6000-46-32 (M3.5) to 1/2-20 (M12) 100 SPM4 in1:1 to 4:1 QUOTE
6000-56-32 (M3.5) to 1/2-20 (M12)100 SPM5 in 1:1 to 4:1 QUOTE
6000-66-32 (M3.5) to 1/2-20 (M12) 100 SPM6 in1:1 to 4:1 QUOTE
6000-76-32 (M3.5) to 1/2-20 (M12) 100 SPM7 in 1:1 to 4:1 QUOTE
6000-86-32 (M3.5) to 1/2-20 (M12)100 SPM8 in1:1 to 4:1 QUOTE
6000-96-32 (M3.5) to 1/2-20 (M12) 100 SPM 9 in1:1 to 4:1 QUOTE
6000-106-32 (M3.5) to 1/2-20 (M12)100 SPM10 in1:1 to 4:1 QUOTE
6000-116-32 (M3.5) to 1/2-20 (M12) 100 SPM11 in1:1 to 4:1 QUOTE
6000-126-32 (M3.5) to 1/2-20 (M12)100 SPM12 in1:1 to 4:1 QUOTE
6000-136-32 (M3.5) to 1/2-20 (M12)100 SPM13 in 1:1 to 4:1 QUOTE
6000-146-32 (M3.5) to 1/2-20 (M12)100 SPM14 in1:1 to 4:1 QUOTE
6000-156-32 (M3.5) to 1/2-20 (M12) 100 SPM 15 in1:1 to 4:1QUOTE
6000-166-32 (M3.5) to 1/2-20 (M12)100 SPM 16 in1:1 to 4:1 QUOTE
