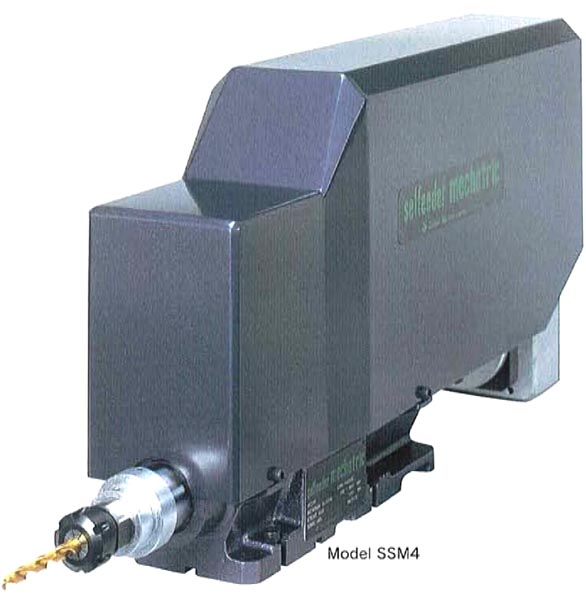

Selfeeder™ Mechatric SSM4 Drill Series

Drilling unit having mechanical feed and electrical control capable of adjusting main spindle rotation speed and feed rate freely. Capable of supplying high-pressured coolant during drilling holes using oil hole drills.

Categories: Selfeeder Component Drilling Units, Servo Driven Mechanical Feed Type to 2 HP (1.6 kW), Drilling and Tapping Machines For Automation

Model #	Spindle Speed (no load) min -1	Max. Chucking capacity (mm)	1 Spindles Aluminum Drill Size (mm)	2 Spindles Aluminum Drill Size (mm)	Spindle Motor	List Price
SSM4-1673	1470 ~ 7320	16	6	4.5	0.75 kW inverter - motor rated speed 3600 min -1	QUOTE
SSM4-1636	720 ~ 3600	16	8	5.5	0.75 kW inverter - motor rated speed 3600 min -1	QUOTE
SSM4-1618	360 ~ 1800	16	11	8	0.75 kW inverter - motor rated speed 1800 min -1	QUOTE
SSM4-1608	180 ~ 880	16	16	10	0.75 kW inverter - motor rated speed 1800 min -1	QUOTE
