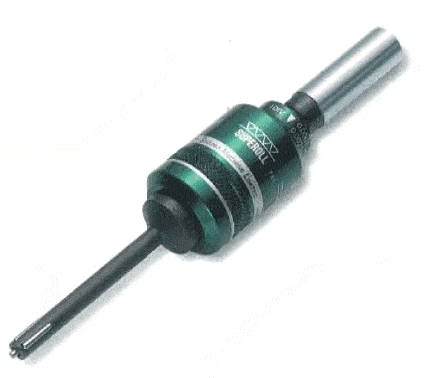

Superoll SH Series - Hutchison Tool Sales

These roller-burnishing tools are used for ID processing and allow precision adjustments to 0.0025 mm. The SH series for processing through holes.

Categories: ID Processing, Drilling and Tapping Machines For Automation, Roller Burnishing Tools

Model #	Type	Hole Type	Processing Diameter	Diameter - A (Adjustment)	Maximum Processing Depth (H)	List Price
SH450	Standard Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.176 ~ 0.188 inches (4.45 ~ 4.80 mm)	1.968 inches (50 mm)	QUOTE
SH475	Standard Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.186 ~ 0.198 inches (4.70 ~ 5.05 mm)	1.968 inches (50 mm)	QUOTE
SH500	Standard Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.195 ~ 0.208 inches (4.95 ~ 5.30 mm)	1.968 inches (50 mm)	QUOTE
SH525	Standard Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.205 ~ 0.218 inches (5.20 ~ 5.55 mm)	1.968 inches (50 mm)	QUOTE
SH550	Standard Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.215 ~ 0.228 inches (5.45 ~ 5.80 mm)	1.968 inches (50 mm)	QUOTE
SH575	Standard Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.225 ~ 0.238 inches (5.70 ~ 6.05 mm)	1.968 inches (50 mm)	QUOTE
SH600	Standard Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.235 ~ 0.253 inches (5.95 ~ 6.45 mm)	1.968 inches (50 mm)	QUOTE
SH640	Standard Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.250 ~ 0.269 inches (6.35 ~ 6.85 mm)	1.968 inches (50 mm)	QUOTE
SH680	Standard Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.266 ~ 0.285 inches (6.75 ~ 7.25 mm)	1.968 inches (50 mm)	QUOTE
SH720	Standard Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.282 ~ 0.301 inches (7.15 ~ 7.65 mm)	1.968 inches (50 mm)	QUOTE
SH760	Standard Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.298 ~ 0.316 inches (7.55 ~ 8.05 mm)	1.968 inches (50 mm)	QUOTE
SH600L	Long Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.235 ~ 0.253 inches (5.95 ~ 6.45 mm)	3.543 inches (90 mm)	QUOTE
SH640L	Long Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.250 ~ 0.269 inches (6.35 ~ 6.85 mm)	3.543 inches (90 mm)	QUOTE
SH680L	Long Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.266 ~ 0.285 inches (6.75 ~ 7.25 mm)	3.543 inches (90 mm)	QUOTE
SH720L	Long Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.282 ~ 0.301 inches (7.15 ~ 7.65 mm)	3.543 inches (90 mm)	QUOTE
SH760L	Long Type	Through Hole	0.178 ~ 0.299 inches (4.50 ~ 7.60 mm)	0.298 ~ 0.316 inches (7.55 ~ 8.05 mm)	3.543 inches (90 mm)	QUOTE
SH800	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.313 ~ 0.336 inches (7.95 ~ 8.55 mm)	1.968 inches (50 mm)	QUOTE
SH850	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.333 ~ 0.356 inches (8.45 ~ 9.05 mm)	1.968 inches (50 mm)	QUOTE
SH900	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.353 ~ 0.375 inches (8.95 ~ 9.55 mm)	1.968 inches (50 mm)	QUOTE
SH950	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.373 ~ 0.395 inches (9.45 ~ 10.05 mm)	1.968 inches (50 mm)	QUOTE
SH1000	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.392 ~ 0.415 inches (9.95 ~ 10.55 mm)	1.968 inches (50 mm)	QUOTE
SH1050	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.412 ~ 0.435 inches (10.45 ~ 11.05 mm)	1.968 inches (50 mm)	QUOTE
SH1100	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.432 ~ 0.454 inches (10.95 ~ 11.55 mm)	1.968 inches (50 mm)	QUOTE
SH1150	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.451 ~ 0.474 inches (11.45 ~ 12.05 mm)	1.968 inches (50 mm)	QUOTE
SH1200	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.471 ~ 0.494 inches (11.95 ~ 12.55 mm)	1.968 inches (50 mm)	QUOTE
SH1250	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.491 ~ 0.513 inches (12.45 ~ 13.05 mm)	1.968 inches (50 mm)	QUOTE
SH1300	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.510 ~ 0.533 inches (12.95 ~ 13.55 mm)	1.968 inches (50 mm)	QUOTE
SH1350	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.530 ~ 0.553 inches (13.45 ~ 14.05 mm)	1.968 inches (50 mm)	QUOTE
SH1400	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.550 ~ 0.572 inches (13.95 ~ 14.55 mm)	1.968 inches (50 mm)	QUOTE
SH1450	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.569 ~ 0.592 inches (14.45 ~ 15.05 mm)	1.968 inches (50 mm)	QUOTE
SH800L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.313 ~ 0.336 inches (7.95 ~ 8.55 mm)	4.724 inches (120 mm)	QUOTE
SH850L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.333 ~ 0.356 inches (8.45 ~ 9.05 mm)	4.724 inches (120 mm)	QUOTE
SH900L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.353 ~ 0.375 inches (8.95 ~ 9.55 mm)	4.724 inches (120 mm)	QUOTE
SH950L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.373 ~ 0.395 inches (9.45 ~ 10.05 mm)	4.724 inches (120 mm)	QUOTE
SH1000L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.392 ~ 0.415 inches (9.95 ~ 10.55 mm)	4.724 inches (120 mm)	QUOTE
SH1050L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.412 ~ 0.435 inches (10.45 ~ 11.05 mm)	4.724 inches (120 mm)	QUOTE
SH1100L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.432 ~ 0.454 inches (10.95 ~ 11.55 mm)	4.724 inches (120 mm)	QUOTE
SH1150L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.451 ~ 0.474 inches (11.45 ~ 12.05 mm)	4.724 inches (120 mm)	QUOTE
SH1200L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.471 ~ 0.494 inches (11.95 ~ 12.55 mm)	4.724 inches (120 mm)	QUOTE
SH1250L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.491 ~ 0.513 inches (12.45 ~ 13.05 mm)	4.724 inches (120 mm)	QUOTE
SH1300L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.510 ~ 0.533 inches (12.95 ~ 13.55 mm)	4.724 inches (120 mm)	QUOTE
SH1350L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.530 ~ 0.553 inches (13.45 ~ 14.05 mm)	4.724 inches (120 mm)	QUOTE
SH1400L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.550 ~ 0.572 inches (13.95 ~ 14.55 mm)	4.724 inches (120 mm)	QUOTE
SH1450L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.569 ~ 0.592 inches (14.45 ~ 15.05 mm)	4.724 inches (120 mm)	QUOTE
SH1500	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.587 ~ 0.633 inches (14.9 ~ 16.1 mm)	1.968 inches (50 mm)	QUOTE
SH1600	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.626 ~ 0.673 inches (15.9 ~ 17.1 mm)	1.968 inches (50 mm)	QUOTE
SH1700	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.666 ~ 0.712 inches (16.9 ~ 18.1 mm)	1.968 inches (50 mm)	QUOTE
SH1800	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.705 ~ 0.751 inches (17.9 ~ 19.1 mm)	1.968 inches (50 mm)	QUOTE
SH1900	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.745 ~ 0.791 inches (18.9 ~ 20.1 mm)	1.968 inches (50 mm)	QUOTE
SH2000	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.784 ~ 0.830 inches (19.9 ~ 21.1 mm)	1.968 inches (50 mm)	QUOTE
SH2100	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.491 ~ 0.513 inches (12.45 ~ 13.05 mm)	1.968 inches (50 mm)	QUOTE
SH2200	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.510 ~ 0.533 inches (12.95 ~ 13.55 mm)	1.968 inches (50 mm)	QUOTE
SH2300	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.530 ~ 0.553 inches (13.45 ~ 14.05 mm)	1.968 inches (50 mm)	QUOTE
SH2400	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.550 ~ 0.572 inches (13.95 ~ 14.55 mm)	1.968 inches (50 mm)	QUOTE
SH2500	Standard Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.569 ~ 0.592 inches (14.45 ~ 15.05 mm)	1.968 inches (50 mm)	QUOTE
SH2600	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.313 ~ 0.336 inches (7.95 ~ 8.55 mm)	4.724 inches (120 mm)	QUOTE
SH2700	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.333 ~ 0.356 inches (8.45 ~ 9.05 mm)	4.724 inches (120 mm)	QUOTE
SH2800	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.353 ~ 0.375 inches (8.95 ~ 9.55 mm)	4.724 inches (120 mm)	QUOTE
SH2900	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.373 ~ 0.395 inches (9.45 ~ 10.05 mm)	4.724 inches (120 mm)	QUOTE
SH3000	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.392 ~ 0.415 inches (9.95 ~ 10.55 mm)	4.724 inches (120 mm)	QUOTE
SH3100	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.412 ~ 0.435 inches (10.45 ~ 11.05 mm)	4.724 inches (120 mm)	QUOTE
SH3200	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.432 ~ 0.454 inches (10.95 ~ 11.55 mm)	4.724 inches (120 mm)	QUOTE
SH3300	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.451 ~ 0.474 inches (11.45 ~ 12.05 mm)	4.724 inches (120 mm)	QUOTE
SH3400	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.471 ~ 0.494 inches (11.95 ~ 12.55 mm)	4.724 inches (120 mm)	QUOTE
SH1500L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.491 ~ 0.513 inches (12.45 ~ 13.05 mm)	4.724 inches (120 mm)	QUOTE
SH1600L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.510 ~ 0.533 inches (12.95 ~ 13.55 mm)	4.724 inches (120 mm)	QUOTE
SH1700L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.530 ~ 0.553 inches (13.45 ~ 14.05 mm)	4.724 inches (120 mm)	QUOTE
SH1800L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.550 ~ 0.572 inches (13.95 ~ 14.55 mm)	4.724 inches (120 mm)	QUOTE
SH1900L	Long Type	Through Hole	0.315 ~ 0.570 inches (8.0 ~ 14.5 mm)	0.569 ~ 0.592 inches (14.45 ~ 15.05 mm)	4.724 inches (120 mm)	QUOTE
SH2000L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.587 ~ 0.633 inches (14.9 ~ 16.1 mm)	1.968 inches (50 mm)	QUOTE
SH2100L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.626 ~ 0.673 inches (15.9 ~ 17.1 mm)	1.968 inches (50 mm)	QUOTE
SH2200L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.666 ~ 0.712 inches (16.9 ~ 18.1 mm)	1.968 inches (50 mm)	QUOTE
SH2300L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.705 ~ 0.751 inches (17.9 ~ 19.1 mm)	1.968 inches (50 mm)	QUOTE
SH2400L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.745 ~ 0.791 inches (18.9 ~ 20.1 mm)	1.968 inches (50 mm)	QUOTE
SH2500L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.784 ~ 0.830 inches (19.9 ~ 21.1 mm)	1.968 inches (50 mm)	QUOTE
SH2600L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.823 ~ 0.870 inches (20.9 ~ 22.1 mm)	1.968 inches (50 mm)	QUOTE
SH2700L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.863 ~ 0.909 inches (21.9 ~ 23.1 mm)	1.968 inches (50 mm)	QUOTE
SH2800L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.902 ~ 0.948 inches (22.9 ~ 24.1 mm)	1.968 inches (50 mm)	QUOTE
SH2900L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.941 ~ 0.988 inches (23.9 ~ 25.1 mm)	1.968 inches (50 mm)	QUOTE
SH3000L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.981 ~ 1.027 inches (24.9 ~ 26.1 mm)	2.755 inches (70 mm)	QUOTE
SH3100L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.020 ~ 1.066 inches (25.9 ~ 27.1 mm)	2.755 inches (70 mm)	QUOTE
SH3200L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.060 ~ 1.106 inches (26.9 ~ 28.1 mm)	2.755 inches (70 mm)	QUOTE
SH3300L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.099 ~ 1.145 inches (27.9 ~ 29.1 mm)	2.755 inches (70 mm)	QUOTE
SH3400L	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.138 ~ 1.185 inches (28.9 ~ 30.1 mm)	2.755 inches (70 mm)	QUOTE
SH3500	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.178 ~ 1.224 inches (29.9 ~ 31.1 mm)	2.755 inches (70 mm)	QUOTE
SH3600	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.217 ~ 1.263 inches (30.9 ~ 32.1 mm)	2.755 inches (70 mm)	QUOTE
SH3700	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.256 ~ 1.303 inches (31.9 ~ 33.1 mm)	2.755 inches (70 mm)	QUOTE
SH3800	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.296 ~ 1.342 inches (32.9 ~ 34.1 mm)	2.755 inches (70 mm)	QUOTE
SH3900	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.335 ~ 1.381 inches (33.9 ~ 35.1 mm)	2.755 inches (70 mm)	QUOTE
SH4000	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.587 ~ 0.633 inches (14.9 ~ 16.1 mm)	5.905 inches (150 mm)	QUOTE
SH4100	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.626 ~ 0.673 inches (15.9 ~ 17.1 mm)	5.905 inches (150 mm)	QUOTE
SH4200	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.666 ~ 0.712 inches (16.9 ~ 18.1 mm)	5.905 inches (150 mm)	QUOTE
SH4300	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.705 ~ 0.751 inches (17.9 ~ 19.1 mm)	5.905 inches (150 mm)	QUOTE
SH4400	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.745 ~ 0.791 inches (18.9 ~ 20.1 mm)	5.905 inches (150 mm)	QUOTE
SH4500	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.784 ~ 0.830 inches (19.9 ~ 21.1 mm)	5.905 inches (150 mm)	QUOTE
SH4600	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.823 ~ 0.870 inches (20.9 ~ 22.1 mm)	5.905 inches (150 mm)	QUOTE
SH4700	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.863 ~ 0.909 inches (21.9 ~ 23.1 mm)	5.905 inches (150 mm)	QUOTE
SH4800	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.902 ~ 0.948 inches (22.9 ~ 24.1 mm)	5.905 inches (150 mm)	QUOTE
SH4900	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.941 ~ 0.988 inches (23.9 ~ 25.1 mm)	5.905 inches (150 mm)	QUOTE
SH5000	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.981 ~ 1.027 inches (24.9 ~ 26.1 mm)	5.905 inches (150 mm)	QUOTE
SH5100	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.823 ~ 0.870 inches (20.9 ~ 22.1 mm)	1.968 inches (50 mm)	QUOTE
SH5200	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.863 ~ 0.909 inches (21.9 ~ 23.1 mm)	1.968 inches (50 mm)	QUOTE
SH5300	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.902 ~ 0.948 inches (22.9 ~ 24.1 mm)	1.968 inches (50 mm)	QUOTE
SH5400	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.941 ~ 0.988 inches (23.9 ~ 25.1 mm)	1.968 inches (50 mm)	QUOTE
SH5500	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.981 ~ 1.027 inches (24.9 ~ 26.1 mm)	2.755 inches (70 mm)	QUOTE
SH5600	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.020 ~ 1.066 inches (25.9 ~ 27.1 mm)	2.755 inches (70 mm)	QUOTE
SH5700	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.060 ~ 1.106 inches (26.9 ~ 28.1 mm)	2.755 inches (70 mm)	QUOTE
SH5800	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.099 ~ 1.145 inches (27.9 ~ 29.1 mm)	2.755 inches (70 mm)	QUOTE
SH5900	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.138 ~ 1.185 inches (28.9 ~ 30.1 mm)	2.755 inches (70 mm)	QUOTE
SH6000	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.178 ~ 1.224 inches (29.9 ~ 31.1 mm)	2.755 inches (70 mm)	QUOTE
SH6100	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.217 ~ 1.263 inches (30.9 ~ 32.1 mm)	2.755 inches (70 mm)	QUOTE
SH6200	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.256 ~ 1.303 inches (31.9 ~ 33.1 mm)	2.755 inches (70 mm)	QUOTE
SH6300	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.296 ~ 1.342 inches (32.9 ~ 34.1 mm)	2.755 inches (70 mm)	QUOTE
SH6400	Standard Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	1.335 ~ 1.381 inches (33.9 ~ 35.1 mm)	2.755 inches (70 mm)	QUOTE
SH6500	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.587 ~ 0.633 inches (14.9 ~ 16.1 mm)	5.905 inches (150 mm)	QUOTE
SH6600	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.626 ~ 0.673 inches (15.9 ~ 17.1 mm)	5.905 inches (150 mm)	QUOTE
SH6700	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.666 ~ 0.712 inches (16.9 ~ 18.1 mm)	5.905 inches (150 mm)	QUOTE
SH6800	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.705 ~ 0.751 inches (17.9 ~ 19.1 mm)	5.905 inches (150 mm)	QUOTE
SH6900	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.745 ~ 0.791 inches (18.9 ~ 20.1 mm)	5.905 inches (150 mm)	QUOTE
SH7000	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.784 ~ 0.830 inches (19.9 ~ 21.1 mm)	5.905 inches (150 mm)	QUOTE
SH7100	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.823 ~ 0.870 inches (20.9 ~ 22.1 mm)	5.905 inches (150 mm)	QUOTE
SH7200	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.863 ~ 0.909 inches (21.9 ~ 23.1 mm)	5.905 inches (150 mm)	QUOTE
SH7300	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.902 ~ 0.948 inches (22.9 ~ 24.1 mm)	5.905 inches (150 mm)	QUOTE
SH7400	Long Type	Through Hole	0.591 ~ 1.339 inches (15 ~ 34 mm)	0.941 ~ 0.988 inches (23.9 ~ 25.1 mm)	5.905 inches (150 mm)	QUOTE
