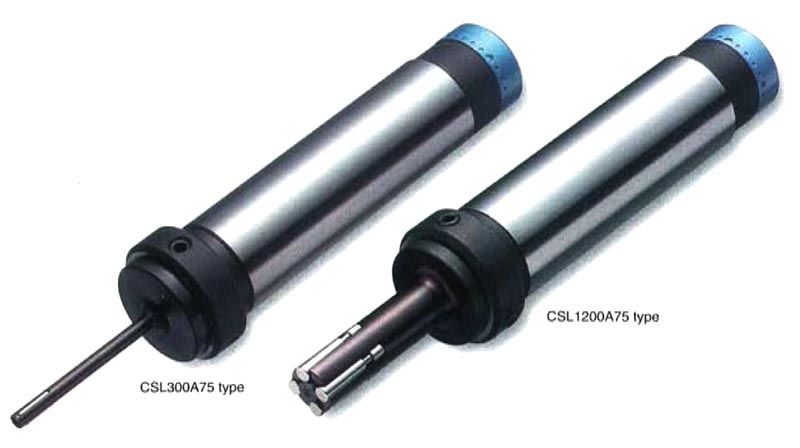

The CSL series Superoll will adapt to most CNC lathes. The CSL series Superoll shank size is standardized to fit most standard CNC lathes.

Categories: , ,
Model #TypeDiameter - A (Adjustment)Maximum Processing Depth (H)Shank Diameter - EShank Length - FTool Length - GList Price
CSL300-A-2.953Standard Type0.117 ~ 0.124 inches (2.95 ~ 3.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL350-A-2.953Standard Type0.136 ~ 0.143 inches (3.45 ~ 3.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL400-A-2.953Standard Type0.156 ~ 0.163 inches (3.95 ~ 4.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL450-A-2.953Standard Type0.176 ~ 0.183 inches (4.45 ~ 4.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL500-A-2.953Standard Type0.195 ~ 0.202 inches (4.95 ~ 5.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL550-A-2.953Standard Type0.215 ~ 0.222 inches (5.45 ~ 5.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL600-A-2.953Standard Type0.235 ~ 0.242 inches (5.95 ~ 6.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL650-A-2.953Standard Type0.254 ~ 0.261 inches (6.45 ~ 6.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL700-A-2.953Standard Type0.274 ~ 0.281 inches (6.95 ~ 7.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL750-A-2.953Standard Type0.294 ~ 0.301 inches (7.45 ~ 7.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL800-A-2.953Standard Type0.313 ~ 0.320 inches (7.95 ~ 8.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL850-A-2.953Standard Type0.333 ~ 0.340 inches (8.45 ~ 8.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL900-A-2.953Standard Type0.353 ~ 0.360 inches (8.95 ~ 9.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL950-A-2.953Standard Type0.373 ~ 0.379 inches (9.45 ~ 9.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL1000-A-2.953Standard Type0.392 ~ 0.399 inches (9.95 ~ 10.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL1050-A-2.953Standard Type0.412 ~ 0.419 inches (10.45 ~ 10.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL1100-A-2.953Standard Type0.432 ~ 0.438 inches (10.95 ~ 11.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL1150-A-2.953Standard Type0.451 ~ 0.458 inches (11.45 ~ 11.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL1200-A-2.953Standard Type0.471 ~ 0.478 inches (11.95 ~ 12.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL1250-A-2.953Standard Type0.491 ~ 0.498 inches (12.45 ~ 12.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL1300-A-2.953Standard Type0.510 ~ 0.517 inches (12.95 ~ 13.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL1350-A-2.953Standard Type0.530 ~ 0.537 inches (13.45 ~ 13.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL1400-A-2.953Standard Type0.550 ~ 0.557 inches (13.95 ~ 14.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)1.772 inches (45 mm)QUOTE
CSL300-A-2.953-LLong Type0.117 ~ 0.124 inches (2.95 ~ 3.15 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL350-A-2.953-LLong Type0.136 ~ 0.143 inches (3.45 ~ 3.65 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL400-A-2.953-LLong Type0.156 ~ 0.163 inches (3.95 ~ 4.15 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL450-A-2.953-LLong Type0.176 ~ 0.183 inches (4.45 ~ 4.65 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL500-A-2.953-LLong Type0.195 ~ 0.202 inches (4.95 ~ 5.15 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL550-A-2.953-LLong Type0.215 ~ 0.222 inches (5.45 ~ 5.65 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL600-A-2.953-LLong Type0.235 ~ 0.242 inches (5.95 ~ 6.15 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL650-A-2.953-LLong Type0.254 ~ 0.261 inches (6.45 ~ 6.65 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL700-A-2.953-LLong Type0.274 ~ 0.281 inches (6.95 ~ 7.15 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL750-A-2.953-LLong Type0.294 ~ 0.301 inches (7.45 ~ 7.65 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL800-A-2.953-LLong Type0.313 ~ 0.320 inches (7.95 ~ 8.15 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL850-A-2.953-LLong Type0.333 ~ 0.340 inches (8.45 ~ 8.65 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL900-A-2.953-LLong Type0.353 ~ 0.360 inches (8.95 ~ 9.15 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL950-A-2.953-LLong Type0.373 ~ 0.379 inches (9.45 ~ 9.65 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL1000-A-2.953-LLong Type0.392 ~ 0.399 inches (9.95 ~ 10.15 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL1050-A-2.953-LLong Type0.412 ~ 0.419 inches (10.45 ~ 10.65 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL1100-A-2.953-LLong Type0.432 ~ 0.438 inches (10.95 ~ 11.15 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL1150-A-2.953-LLong Type0.451 ~ 0.458 inches (11.45 ~ 11.65 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL1200-A-2.953-LLong Type0.471 ~ 0.478 inches (11.95 ~ 12.15 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL1250-A-2.953-LLong Type0.491 ~ 0.498 inches (12.45 ~ 12.65 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL1300-A-2.953-LLong Type0.510 ~ 0.517 inches (12.95 ~ 13.15 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL1350-A-2.953-LLong Type0.530 ~ 0.537 inches (13.45 ~ 13.65 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL1400-A-2.953-LLong Type0.550 ~ 0.557 inches (13.95 ~ 14.15 mm)1.968 inches (50 mm)0.75 inches (19.05 mm)2.953 inches (75 mm)2.559 inches (65 mm)QUOTE
CSL300-A-4.528Standard Type0.117 ~ 0.124 inches (2.95 ~ 3.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)4.528 inches (115 mm)1.772 inches (45 mm)QUOTE
CSL350-A-4.528Standard Type0.136 ~ 0.143 inches (3.45 ~ 3.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)4.528 inches (115 mm)1.772 inches (45 mm)QUOTE
CSL400-A-4.528Standard Type0.156 ~ 0.163 inches (3.95 ~ 4.15 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)4.528 inches (115 mm)1.772 inches (45 mm)QUOTE
CSL450-A-4.528Standard Type0.176 ~ 0.183 inches (4.45 ~ 4.65 mm)1.181 inches (30 mm)0.75 inches (19.05 mm)4.528 inches (115 mm)1.772 inches (45 mm)QUOTE
